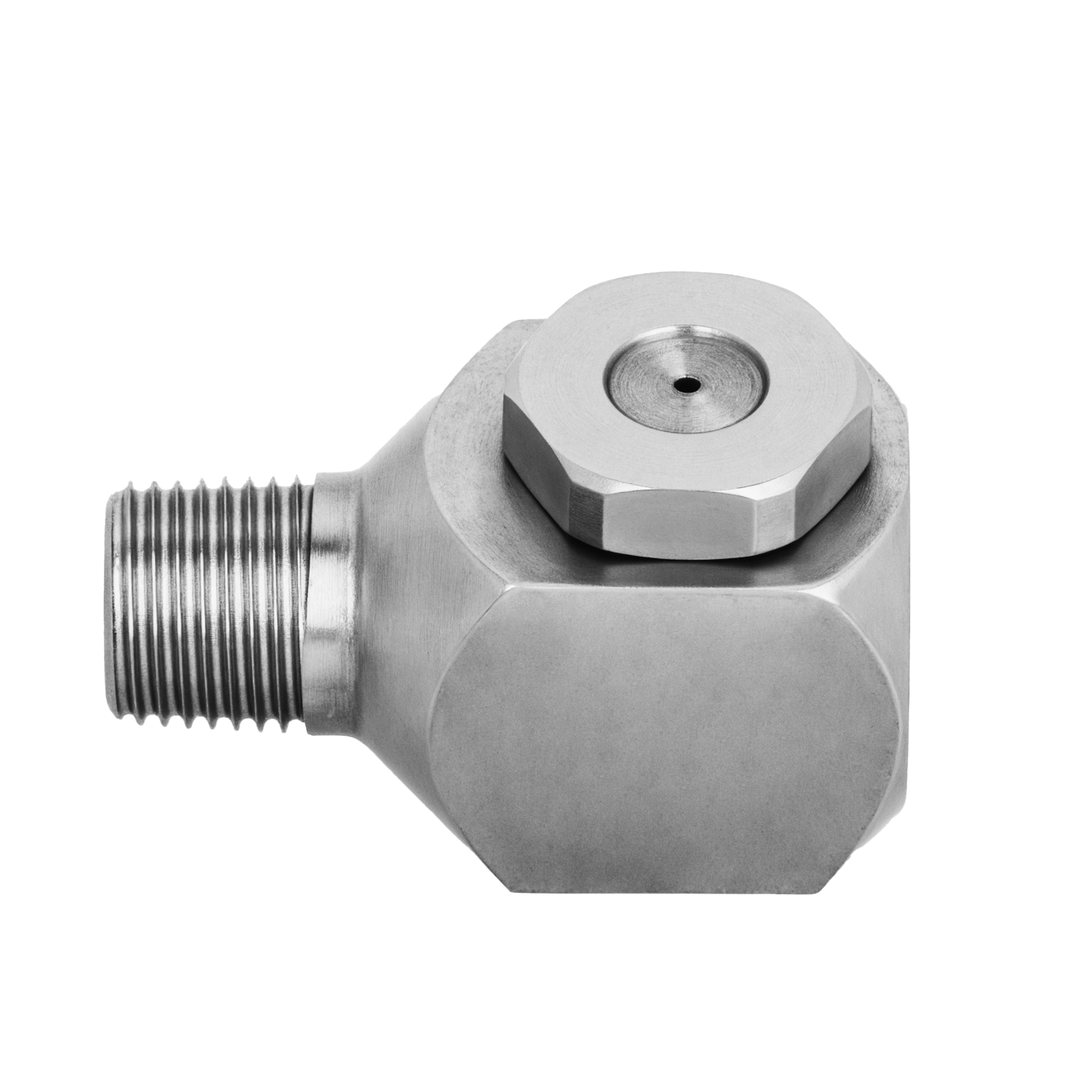

NPBX-1-5W-1/4-316 – Hollow Cone Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 1-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During cooling & quenching on a steel & metals site, utilities coordinators trust the NPBX-1-5W-1/4-316 to deliver consistent spray coverage that supports precise temperature control. Fabricated from 316L stainless steel, this nozzle offers corrosion resistance critical for extended service in harsh environments. Its hollow cone spray pattern distributes fluid evenly over metal surfaces, reducing thermal stress and improving process reliability. Operators often note measurable improvements in quenching uniformity and component quality after integrating the NPBX-1-5W-1/4-316.
Applications
In cooling & quenching operations, the nozzle ensures rapid heat dissipation, protecting metal parts from warping or cracking. Additionally, its design aids dust & pollution control by effectively atomizing sprays to capture airborne particulates, contributing to cleaner workplace conditions.
Industries
The nozzle is favored across automotive, chemical processing, and manufacturing & assembly sectors where precise fluid application and corrosion resistance are essential. Facilities in building materials, breweries & wineries, and cement industries also rely on its durability and consistency to maintain operational efficiency under demanding conditions.
