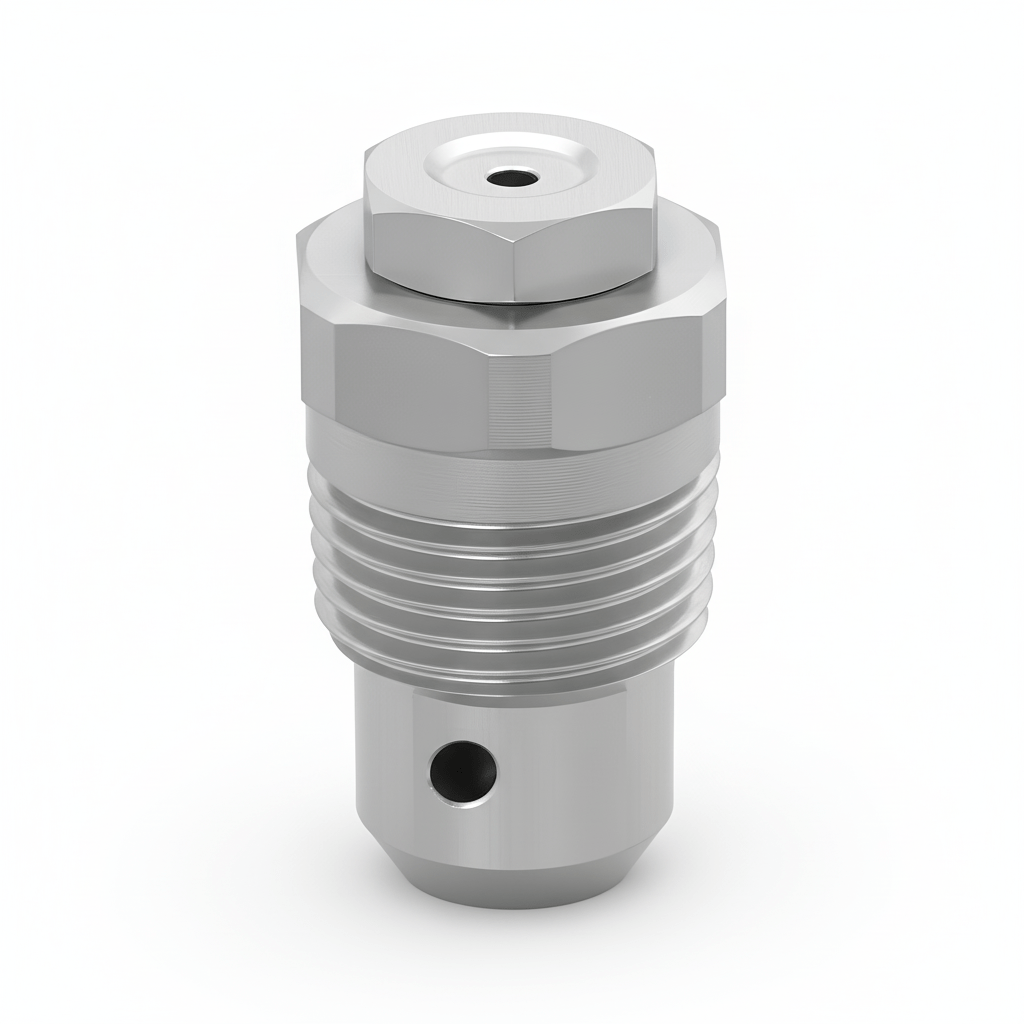

NPBD-20-25W-3/4-SS – Hollow Cone Nozzle, 3/4 Inlet, 303/304 stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBD |
| Capacity Size | 20-25W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Orifice Diameter. Nom. (mm) | 7.1 |
| Orifice Diameter. Nom. (in) | 0.297 |
| Inlet Connection Size (in.) | 3/4 |
| Hex Size (mm) | 27 |
| Inlet Dia. Nom. (in) | 0.281 |
| Max. Free Passage Dia. (mm) | 7.5 |
Description
Product Overview
Inside the roofing line's car wash stage, a process engineer relies on the NPBD-20-25W-3/4-SS to deliver consistent and uniform spray coverage. Constructed from 303/304 stainless steel, this nozzle withstands corrosive environments while maintaining precise hollow cone spray patterns. The 3/4-inch inlet size facilitates easy integration into existing piping systems, enabling controlled fluid distribution that optimizes cleaning efficiency. Operators monitor flow rates and spray angles to ensure the nozzle meets performance specifications throughout production cycles.
Applications
The NPBD-20-25W-3/4-SS supports cooling & quenching processes by providing even liquid distribution that stabilizes material temperatures during manufacturing. In dust & pollution control, the nozzle's uniform spray helps suppress airborne particulates, contributing to compliance with environmental safety standards.
Industries
This nozzle is commonly utilized in building materials, Energy, and mining sectors where corrosion resistance and precise spray patterns are critical to process reliability. Additionally, cement, manufacturing & assembly, and roofing industries benefit from its durable construction and consistent flow characteristics under demanding operational conditions.
