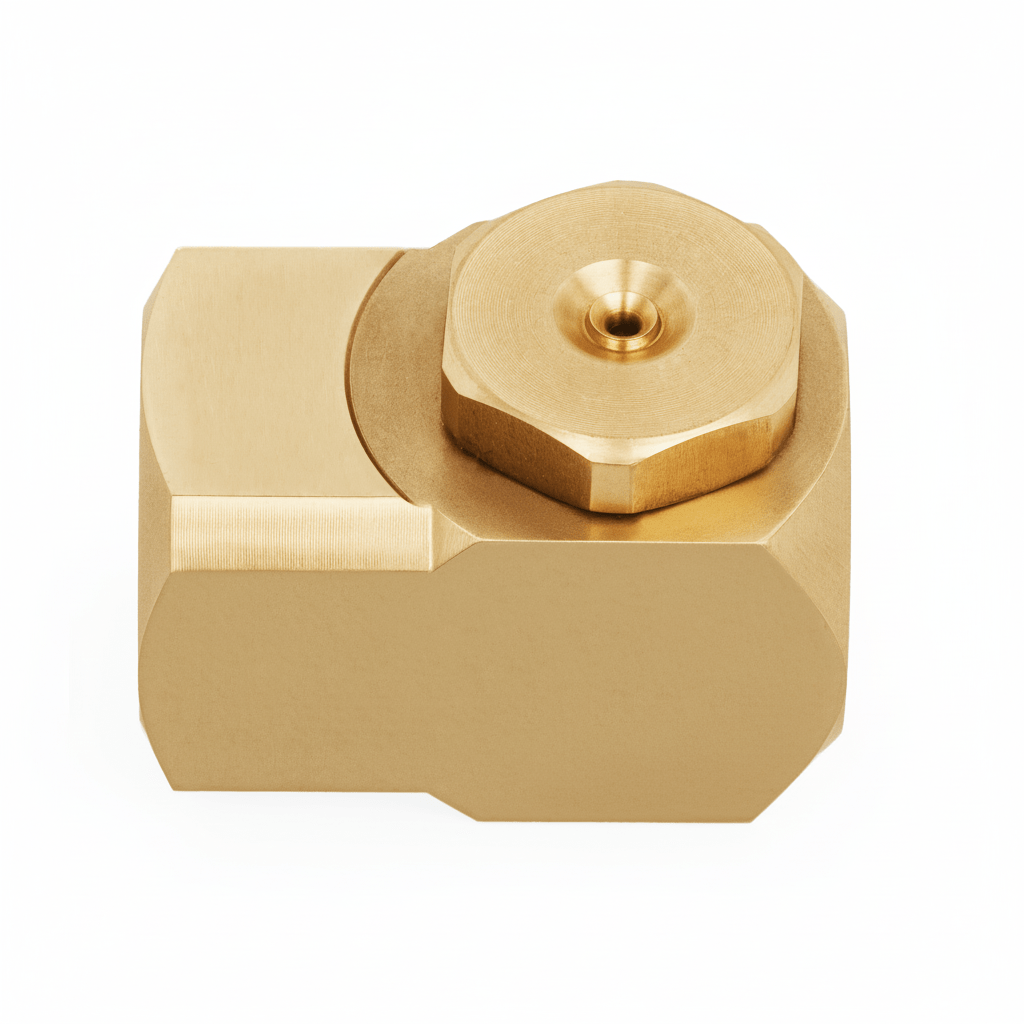

NPAX-8-10W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPAX |
| Capacity Size | 8-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | FEMALE (F) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 4 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 32 |
| Length (in) | 1.250 |
| Inlet Dia. Nom. (in) | 0.156 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
A production technician in the automotive facility uses the NPAX-8-10W-1/4 during specialty applications to achieve consistent spray coverage on engine components. Constructed of brass, the nozzle delivers a hollow cone spray pattern that ensures precise fluid distribution while resisting corrosion in harsh environments. The technician relies on the 1/4 inch inlet size for secure attachment to standard fluid lines, maintaining steady flow rates critical to process stability. This nozzle's uniform spray contributes to extended equipment longevity and reduced material waste in daily operations.
Applications
In cooling & quenching processes, the NPAX-8-10W-1/4 provides an even and controlled spray that aids in maintaining part integrity by rapidly dissipating heat. Additionally, its role in dust & pollution control helps minimize airborne particles, improving workplace safety and complying with environmental regulations.
