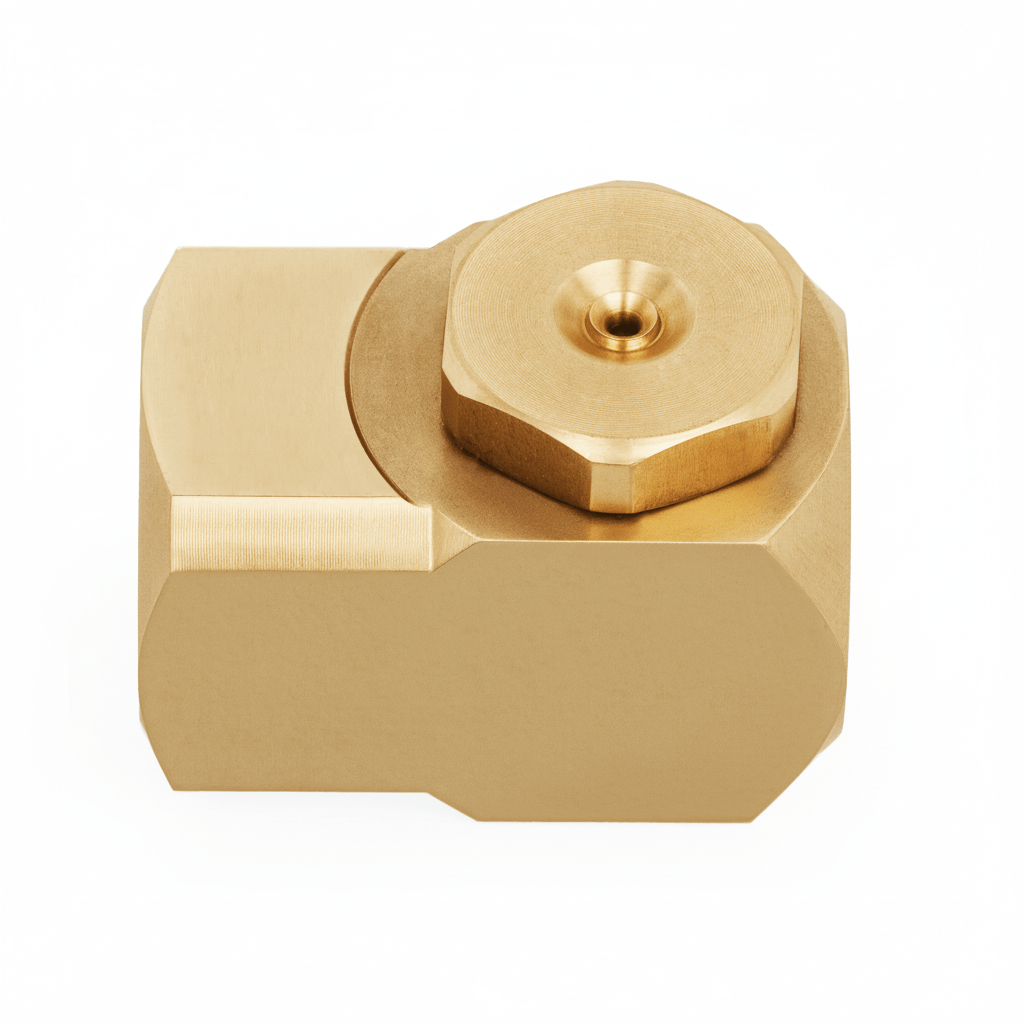

NPAX-10-20W-3/8 β Hollow Cone Nozzle, 3/8 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPAX |
| Capacity Size | 10-20W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | FEMALE (F) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 5.2 |
| Orifice Diameter. Nom. (in) | 0.234 |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 37.5 |
| Length (in) | 1.469 |
| Inlet Dia. Nom. (in) | 0.203 |
| Max. Free Passage Dia. (mm) | 6 |
Description
Product Overview
When automotive crews manage cooling & quenching, the NPAX-10-20W-3/8 lets each plant operator achieve consistent spray coverage that supports thermal regulation of metal parts. Constructed from brass, the nozzle's hollow cone design ensures uniform distribution and resists corrosion under continuous exposure to harsh fluids. Operators typically install the nozzle with its 3/8-inch inlet to integrate seamlessly into existing piping systems, maintaining precise flow rates that improve process reliability. This combination of materials and performance helps reduce downtime caused by uneven cooling or nozzle wear.
Applications
In cooling & quenching processes, the NPAX-10-20W-3/8 delivers a steady spray pattern critical for controlling metal temperatures and preventing material stress. The nozzle's uniform coverage also benefits dust & pollution control by efficiently dispersing suppressant agents, which contributes to cleaner work environments and regulatory compliance.
Industries
The NPAX-10-20W-3/8 is commonly utilized across automotive, building materials, and chemical processing industries due to its durability and consistent performance. It also finds applications within Energy, steel & metals, breweries & wineries, and manufacturing & assembly sectors where precise fluid delivery is essential for process control and product quality.
