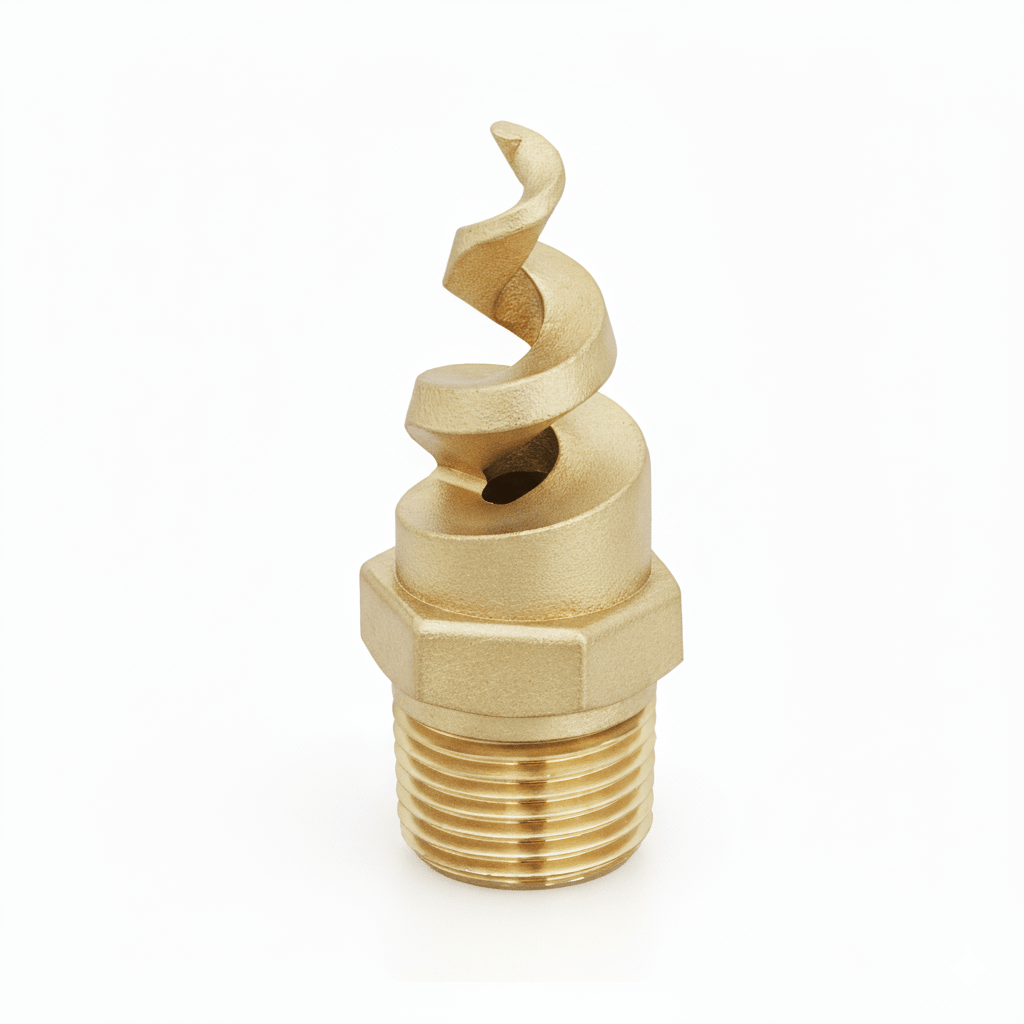

NPHSJ-9013-1/4 – Full Cone, Spiral Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 13 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During cooling & quenching on a dairy site, maintenance supervisors trust the NPHSJ-9013-1/4 to deliver consistent and uniform spray coverage essential for process stability. The nozzle's brass construction ensures corrosion resistance in harsh cleaning environments, while its full cone, spiral design produces an even distribution of fluid across the target area. Operators report measurable improvements in temperature control and reduced downtime due to clogging or uneven flow, enhancing overall operational efficiency.
Applications
This nozzle is frequently deployed in cleaning & washing applications where consistent spray patterns support thorough surface treatment without chemical overuse. Additionally, in cooling & quenching processes, the NPHSJ-9013-1/4 helps maintain precise temperature regulation, which contributes to product quality and energy savings downstream.
Industries
The NPHSJ-9013-1/4 is favored in sectors such as building materials, chemical processing, and Energy for its durability and reliable spray characteristics under demanding conditions. Mining, steel & metals, breweries & wineries, cement, dairy, and manufacturing & assembly industries utilize this nozzle to manage processes requiring precise fluid application and resistance to corrosive substances.
