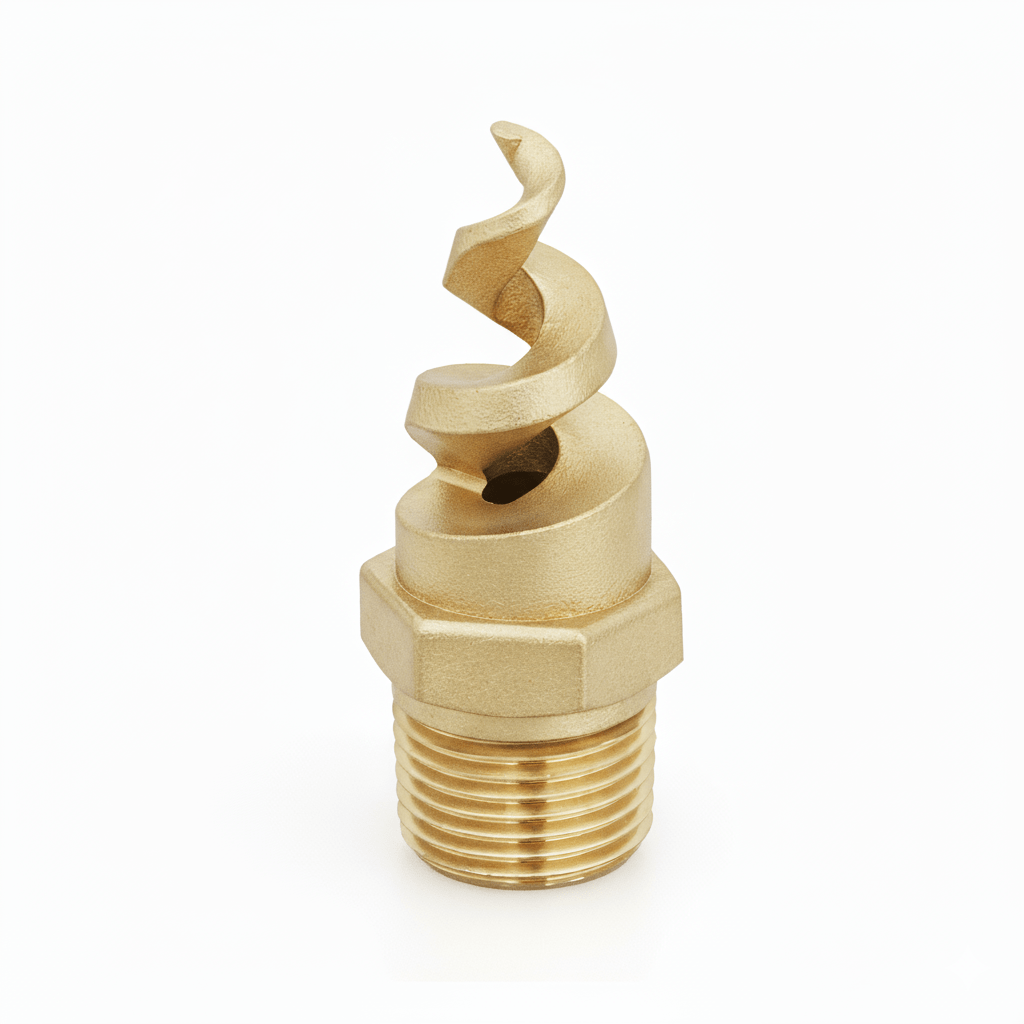

NPHSJ-9007-1/4 – Full Cone, Spiral Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 7 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 2.4 |
| Orifice Diameter. Nom. (in) | 0.094 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 2.4 |
Description
Product Overview
Inside the building materials line's cooling & quenching stage, a maintenance supervisor relies on the NPHSJ-9007-1/4 to deliver consistent fluid distribution across metal components. Constructed from brass, the nozzle's full cone spiral design generates a uniform spray pattern that ensures even temperature reduction and minimizes thermal stress. During routine operations, the supervisor monitors flow rates and spray coverage to maintain process stability, leveraging the nozzle's corrosion resistance to reduce downtime in harsh production environments.
Applications
In cleaning & washing processes, the NPHSJ-9007-1/4 enables effective removal of residues without excessive water use, improving overall system efficiency. Its uniform spray coverage also supports dust & pollution control efforts by capturing airborne particles and reducing environmental emissions at the facility level.
Industries
Sectors such as chemical processing, mining, and steel & metals favor this nozzle for its ability to withstand corrosive fluids and deliver reliable spray patterns under continuous operation. Additionally, breweries & wineries and dairy plants benefit from its precision in specialty applications that demand consistent fluid handling and hygiene standards.
