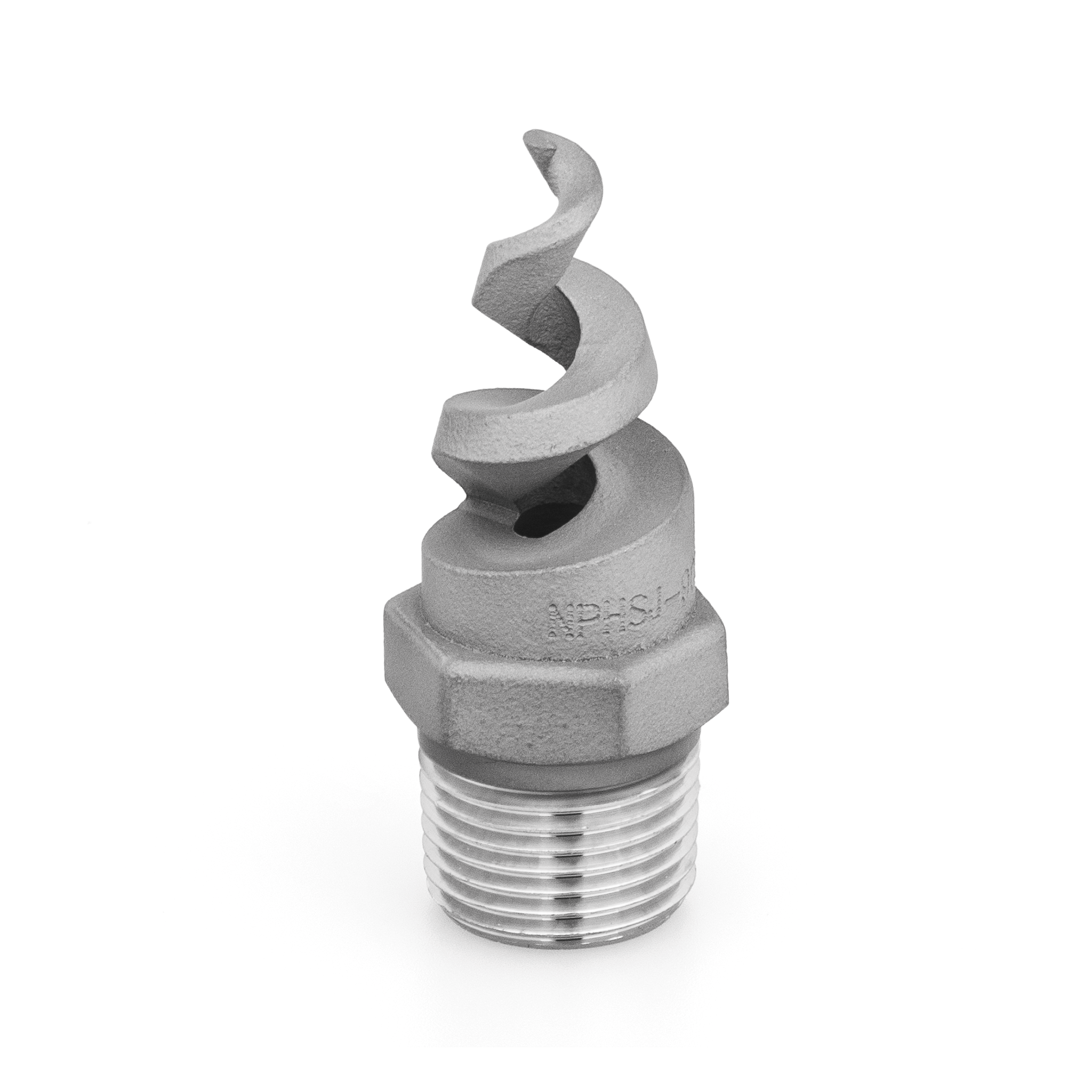

NPHSJ-12020-1/4-316 β Full Cone, Spiral Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 20 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 4.0 |
| Orifice Diameter. Nom. (in) | 0.156 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 120 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
Inside the breweries & wineries line's specialty applications stage, a plant operator relies on the NPHSJ-12020-1/4-316 to deliver a consistent full cone spray essential for sanitation and temperature control. Constructed from 316L stainless steel, the nozzle resists corrosion from acidic cleaning agents and harsh environments. The 1/4-inch inlet facilitates integration with existing piping while maintaining a uniform spiral spray pattern. This precision design ensures thorough coverage, reducing downtime and improving process reliability.
Applications
In operations focused on cleaning & washing, the spiral nozzle provides an even distribution of spray that enhances surface contact and residue removal. Additionally, its consistent flow benefits fire protection & safety systems by maintaining reliable spray coverage during activation events, thereby supporting operational security.
Industries
The nozzle's durability and corrosion resistance make it suitable for demanding environments in chemical processing, mining, and steel & metals manufacturing. Meanwhile, sectors such as building materials, breweries & wineries, and dairy prefer this model due to its ability to maintain stable spray patterns under varied process conditions.
