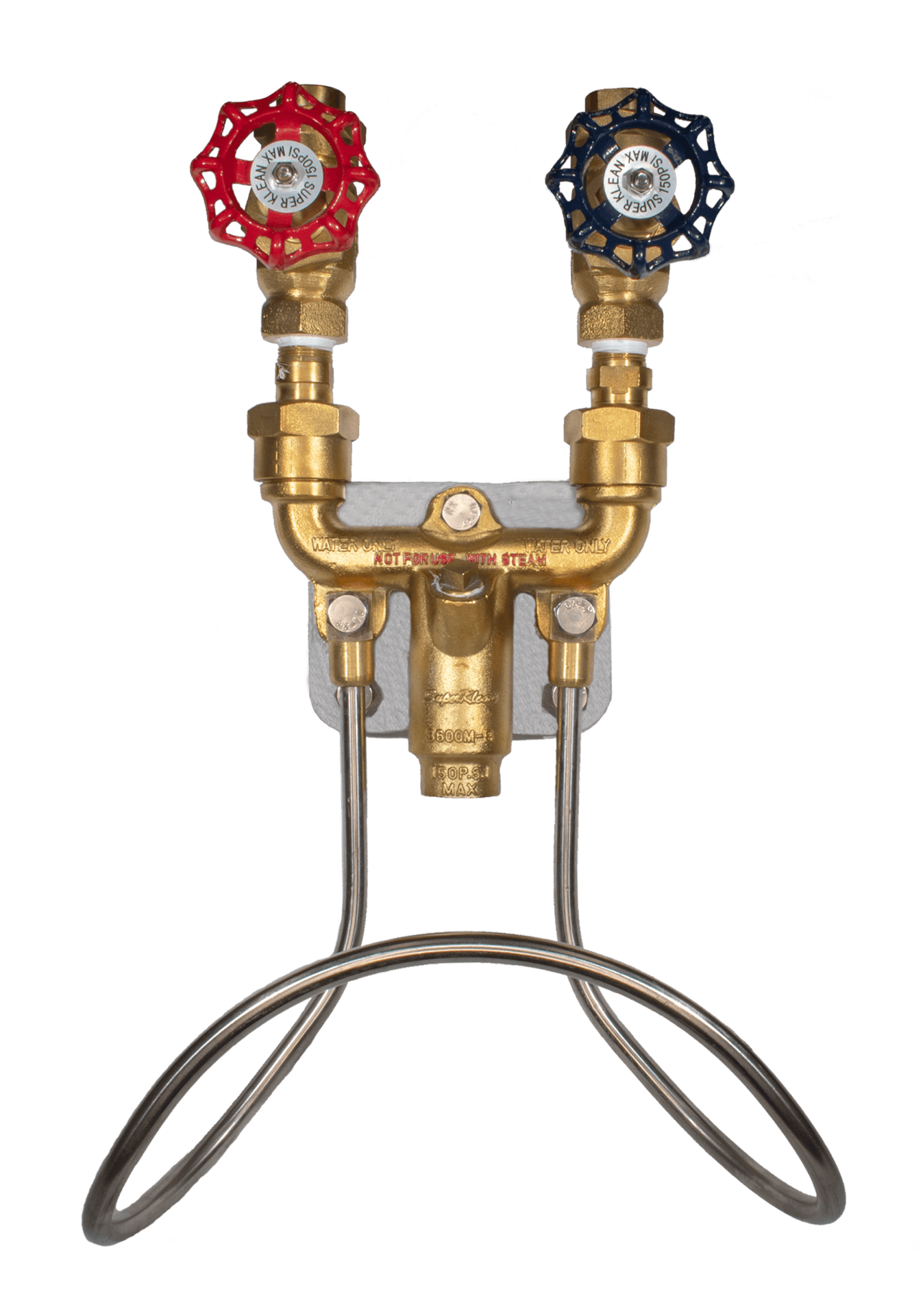

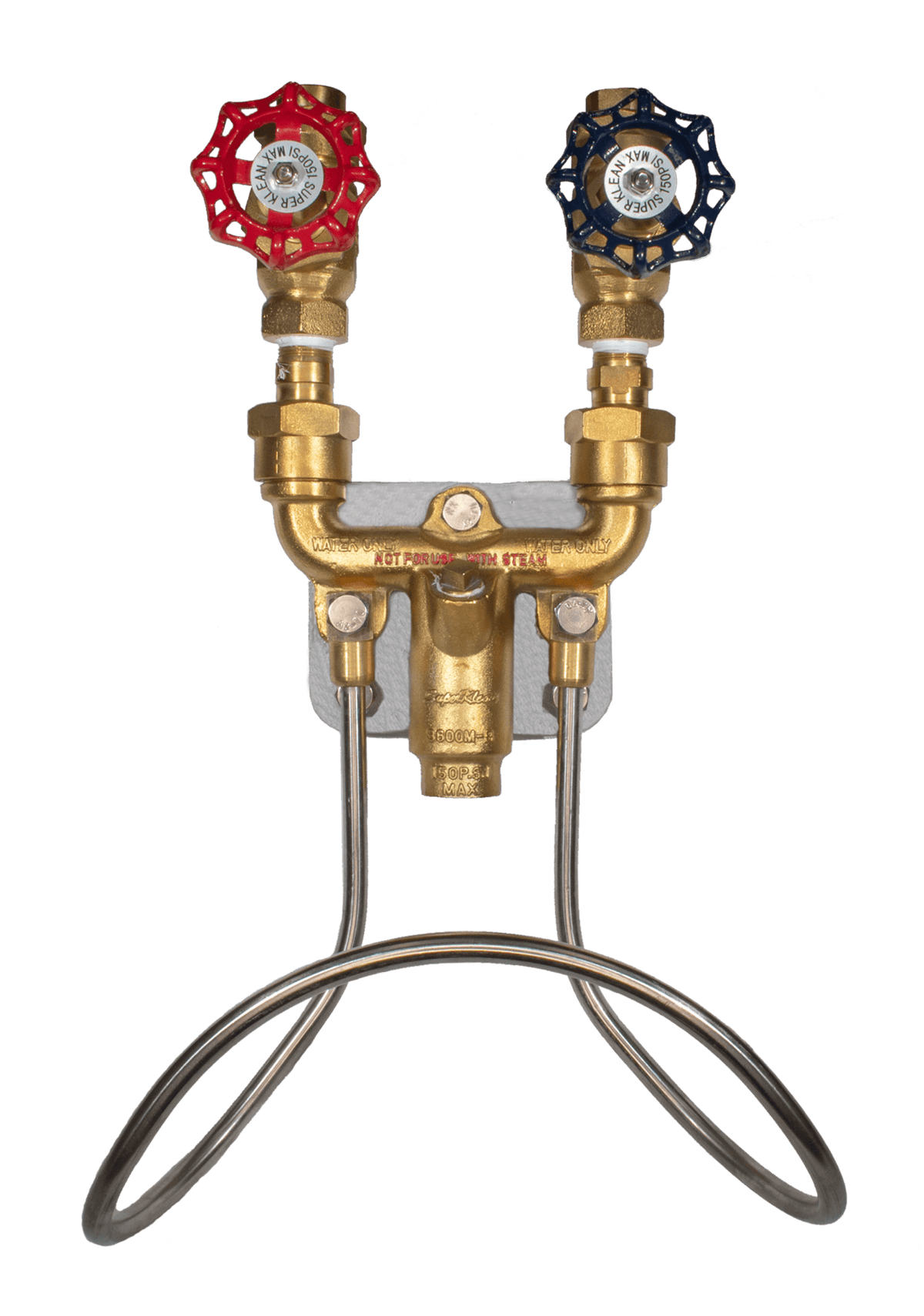

The SuperKlean 3600M-B Brass Hot & Cold Water Mixing Station delivers precise temperature control trusted by food, beverage, and pharmaceutical facilities worldwide for over 25 years. This complete hose station blends hot and cold water instantly to achieve your required temperature output for efficient washdown operations.
Engineered with a specially designed Y-style body, the 3600M-B incorporates lift check valves and ball joint unions that provide superior flexibility during installation. The inlet center lines match standard industry dimensions, making replacement or new installations straightforward without costly modifications.
Every 3600M-B ships complete with brass globe valves for precise temperature adjustment, brass check valves to prevent backflow, a 304 stainless steel hose rack for convenient hose storage, and a mounting plate for easy behind-the-unit cleanup. This all-in-one package means faster installation with no additional hardware to source.
The brass construction handles maximum pressures of 150 PSI and temperatures up to 200°F (93°C), delivering reliable performance in demanding industrial environments. Globe valve design allows fine-tuned temperature control—ideal for applications requiring consistent water temperature throughout the washdown process.
Technical Specifications:
- Part Number: 3600M-B
- Mixer Body: Brass
- Globe Valves: Brass
- Check Valves: Brass
- Hose Rack: 304 Stainless Steel
- Inlet/Outlet Diameter: 3/4" NPT
- Maximum Pressure: 150 PSI
- Maximum Temperature: 200°F (93°C)
- Weight: 17.6 lbs (8 kg)
- Warranty: 5 Years
Included Components:
- Brass mixing body with Y-style design
- 2 brass globe valves (hot and cold)
- 2 brass check valves
- 304 stainless steel hose rack
- Mounting plate
- Ball joint unions for flexible installation
The 3600M-B excels in wineries, breweries, food processing plants, beverage production, dairy operations, pharmaceutical manufacturing, restaurants, bakeries, cheese production, and general industrial sanitation. Thousands of installations worldwide—from craft breweries to multinational food companies—rely on this proven design for daily washdown operations.
For applications requiring temperature monitoring, add the optional stainless steel temperature gauge (see model 3600M-B-T) to verify water temperature at a glance during washdown procedures.
Note: The 3600M Series is designed for hot and cold water mixing only. For steam applications, see the DuraMix 8000 Series steam and cold water mixing stations.
FAQ
What is the maximum pressure rating for the 3600M-B mixing station? The 3600M-B Brass Hot & Cold Water Mixing Station has a maximum operating pressure of 150 PSI.
What temperature can the 3600M-B handle? The 3600M-B is rated for water temperatures up to 200°F (93°C).
What is included with the 3600M-B hose station? The 3600M-B includes the brass mixing body, 2 brass globe valves, 2 brass check valves, a 304 stainless steel hose rack, mounting plate, and ball joint unions—everything needed for installation.
What inlet size does the 3600M-B use? The 3600M-B features 3/4 inch NPT inlet and outlet connections, matching standard industry dimensions for easy installation or replacement.
How heavy is the 3600M-B mixing station? The 3600M-B Brass Hot & Cold Water Mixing Station weighs 17.6 pounds (8 kg).
What is the warranty on the 3600M-B? The 3600M-B comes with a full 5-year no questions asked warranty—the longest in the industry.
Can I add a temperature gauge to the 3600M-B? Yes, an optional stainless steel temperature gauge is available. Order model 3600M-B-T to receive the unit with an adjustable angle temperature gauge included.
