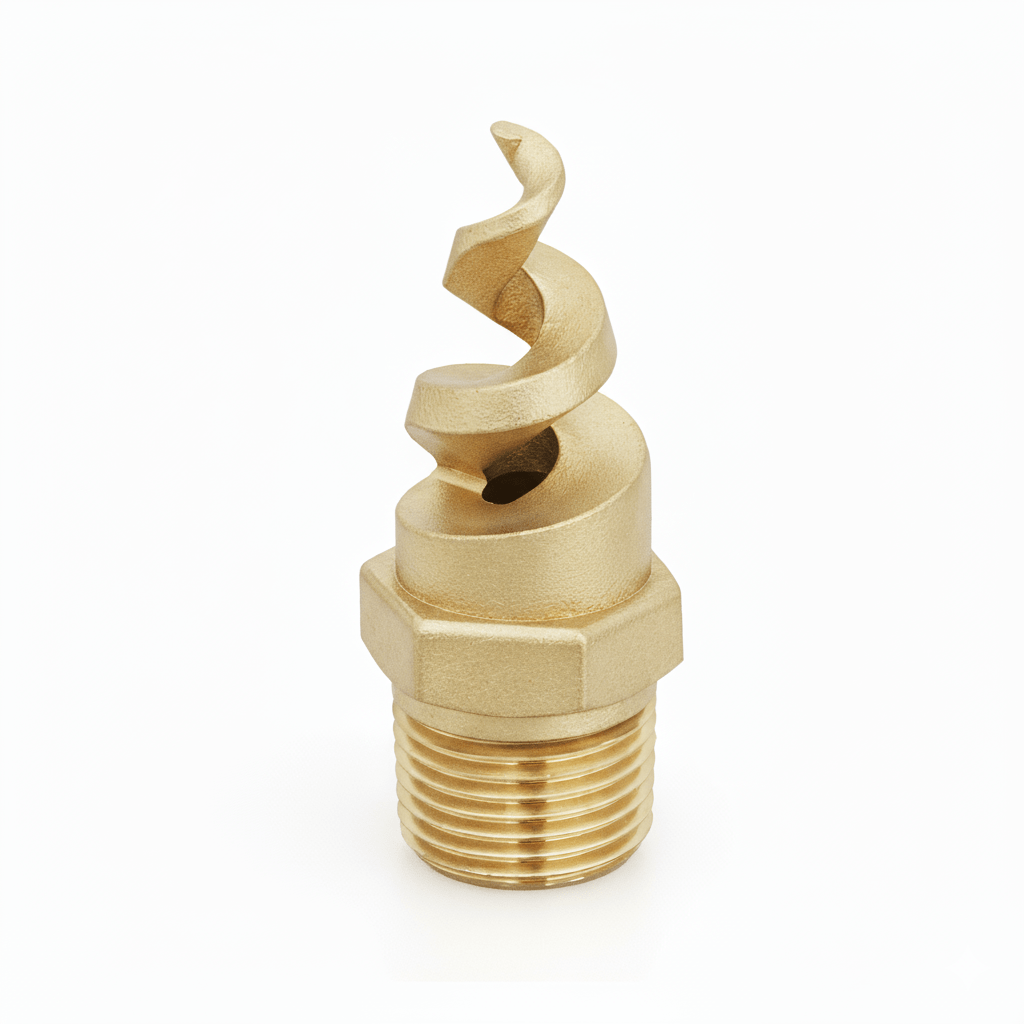

NPHSJ-90340-1 – Full Cone, Spiral Nozzle, 1 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 340 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 15.9 |
| Orifice Diameter. Nom. (in) | 0.625 |
| Inlet Connection Size (in.) | 1 |
| Length (mm) | 116 |
| Length (in) | 3.625 |
| Hex Size (mm) | 34.9 |
| Hex Size (in) | 1-3/8 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 6.4 |
Description
Product Overview
A plant operator in the Energy facility uses the NPHSJ-90340-1 during cooling & quenching to ensure consistent temperature control across metal surfaces. Made from corrosion-resistant brass, this full cone spiral nozzle delivers a uniform spray pattern that helps maintain process stability under harsh conditions. By providing reliable coverage, the nozzle supports efficient heat dissipation and reduces thermal stress in critical equipment. Its 1-inch inlet size allows for integration into existing piping systems without extensive modification.
Applications
In cooling & quenching applications, the NPHSJ-90340-1 helps manage thermal loads to prevent material warping and extend component life. Additionally, its role in cleaning & washing processes ensures the removal of residues that could interfere with subsequent production stages or compromise safety standards.
Industries
This nozzle is favored in industries such as building materials, chemical processing, and mining due to its durability and consistent spray distribution. Sectors like steel & metals, breweries & wineries, and dairy rely on it to support both operational efficiency and compliance with stringent process requirements.
