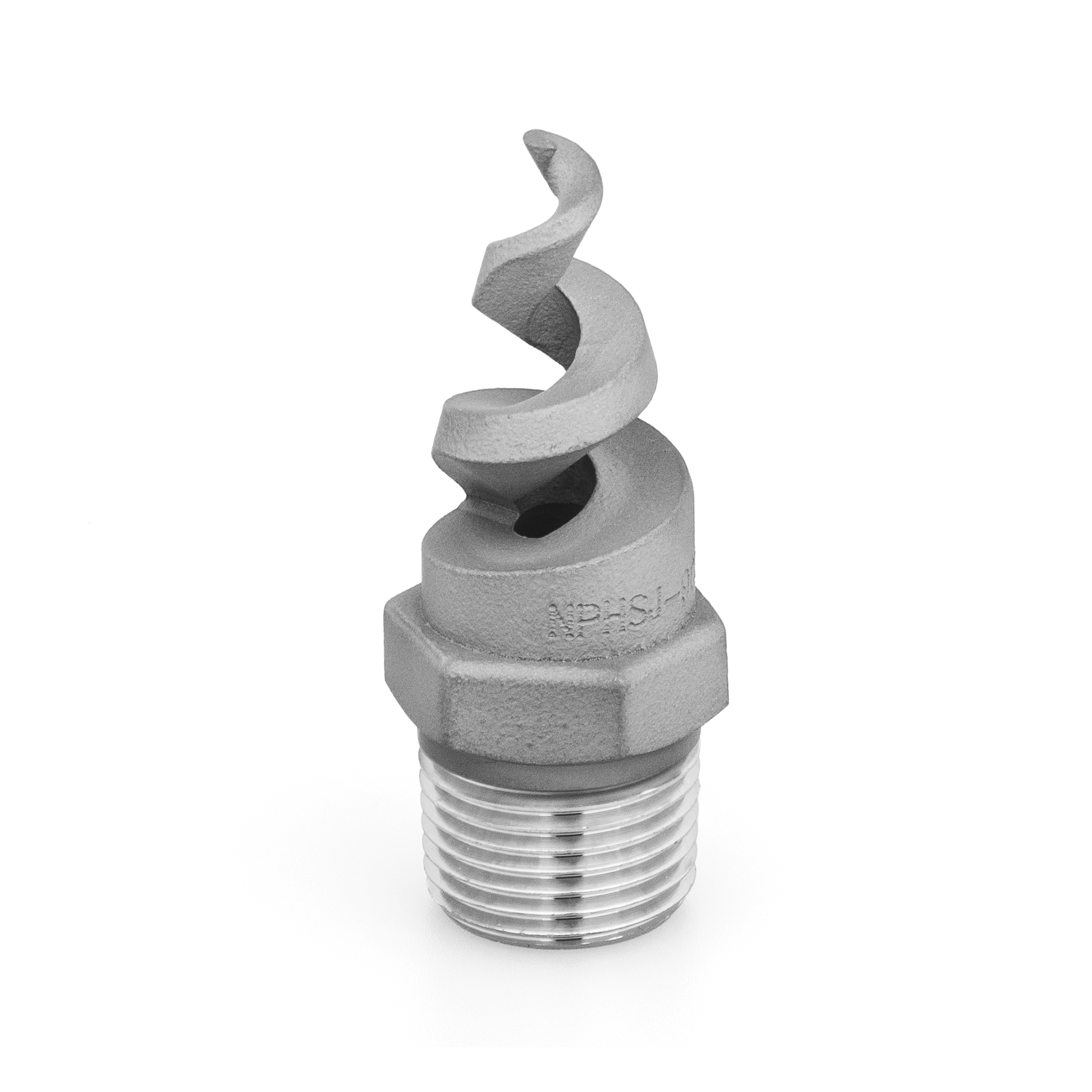

NPHSJ-90210-3/4-316 – Full Cone, Spiral Nozzle, 3/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 210 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 12.7 |
| Orifice Diameter. Nom. (in) | 0.5 |
| Inlet Connection Size (in.) | 3/4 |
| Length (mm) | 87.3 |
| Length (in) | 2.750 |
| Hex Size (mm) | 27 |
| Hex Size (in) | 1-1/16 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 4.8 |
Description
Product Overview
When manufacturing & assembly crews manage cooling & quenching, the NPHSJ-90210-3/4-316 lets each production technician install a corrosion-resistant component crafted from 316L stainless steel, designed for rugged industrial environments. This precision full cone, spiral nozzle ensures a uniform spray pattern that maintains consistent coverage across metal surfaces, optimizing thermal regulation during heat treatment processes. Operators rely on its 3/4-inch inlet size for straightforward integration into existing piping systems, delivering repeatable flow rates that support tight process controls. The NPHSJ-90210-3/4-316 nozzle's material choice and pattern design contribute to extended service intervals and predictable spray distribution.
Applications
Effective cleaning & washing using this nozzle reduces residue buildup on equipment, which in turn minimizes downtime and extends maintenance cycles. Additionally, in dust & pollution control applications, the uniform spray pattern helps capture airborne particulates, improving air quality compliance and operational safety.
Industries
Sectors such as building materials, chemical processing, and steel & metals favor this nozzle for its balance of durability and spray consistency under harsh conditions. Breweries & wineries and dairy manufacturers also utilize it to meet sanitary standards while supporting cooling and washing operations critical to product quality.
