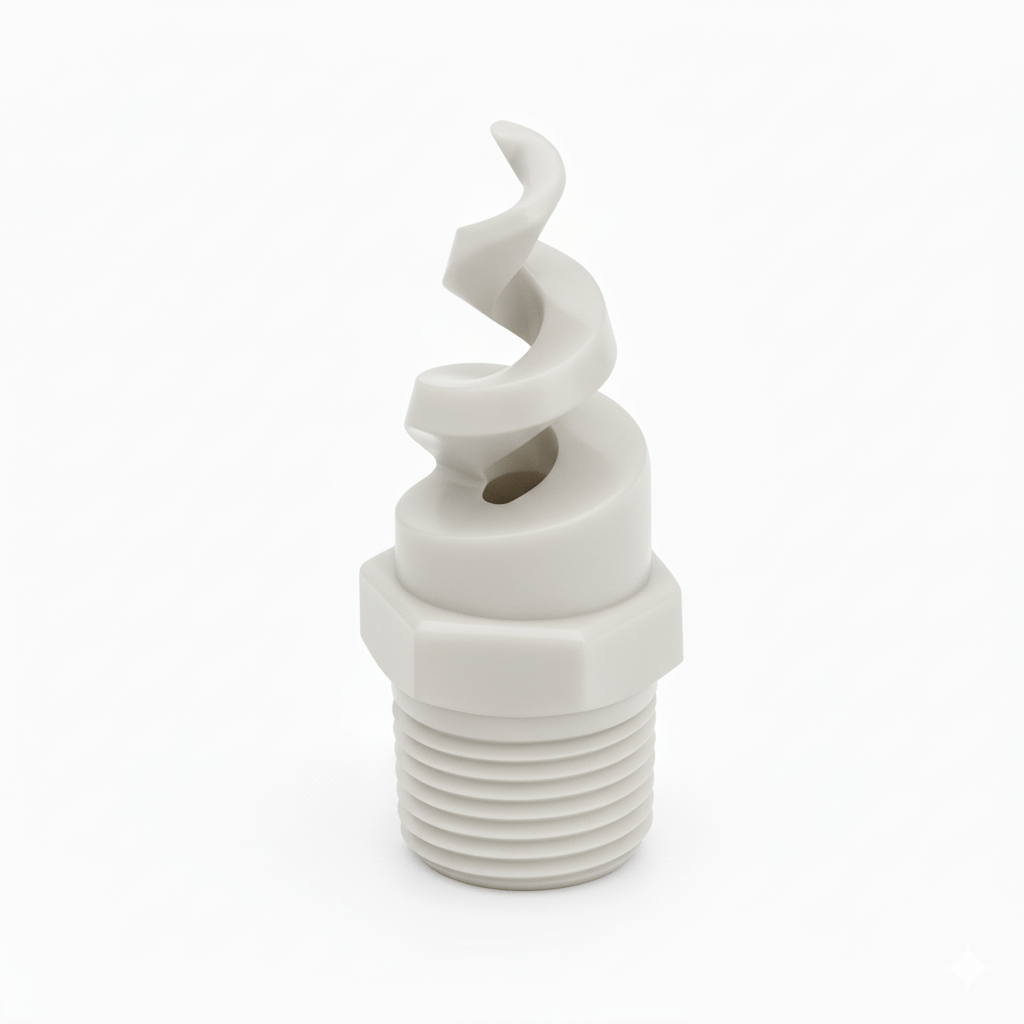

NPHSJ-6082-3/8-PP – Full Cone, Spiral Nozzle, 3/8 Inlet, Polypropylene
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 82 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Polypropylene |
| Orifice Diameter. Nom. (mm) | 7.9 |
| Orifice Diameter. Nom. (in) | 0.313 |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 60.3 |
| Length (in) | 1.875 |
| Hex Size (mm) | 17.5 |
| Hex Size (in) | 11/16 |
| Spray Angle at Rated Pressure (PSI) | 60 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
Inside the steel & metals line's cleaning & washing stage, a process engineer relies on the NPHSJ-6082-3/8-PP to deliver consistent spray coverage with its full cone, spiral design. Constructed from polypropylene, the nozzle resists corrosion under harsh chemical exposure, extending service life. Its 3/8-inch inlet allows easy integration into existing systems, providing uniform fluid distribution that enhances cleaning efficiency and reduces downtime. Operators adjust flow rates based on process requirements, ensuring precise control over spray intensity.
Applications
In cleaning & washing operations, the nozzle's uniform spray pattern ensures thorough surface coverage, improving contaminant removal without excessive water use. Additionally, in cooling & quenching processes, this even distribution supports rapid temperature reduction, minimizing thermal stress on materials downstream.
Industries
The NPHSJ-6082-3/8-PP is favored in building materials, chemical processing, and Energy sectors because of its chemical resistance and reliable spray performance. Mining, steel & metals, and breweries & wineries industries also benefit from its durability in demanding environments where consistent nozzle operation is critical.
