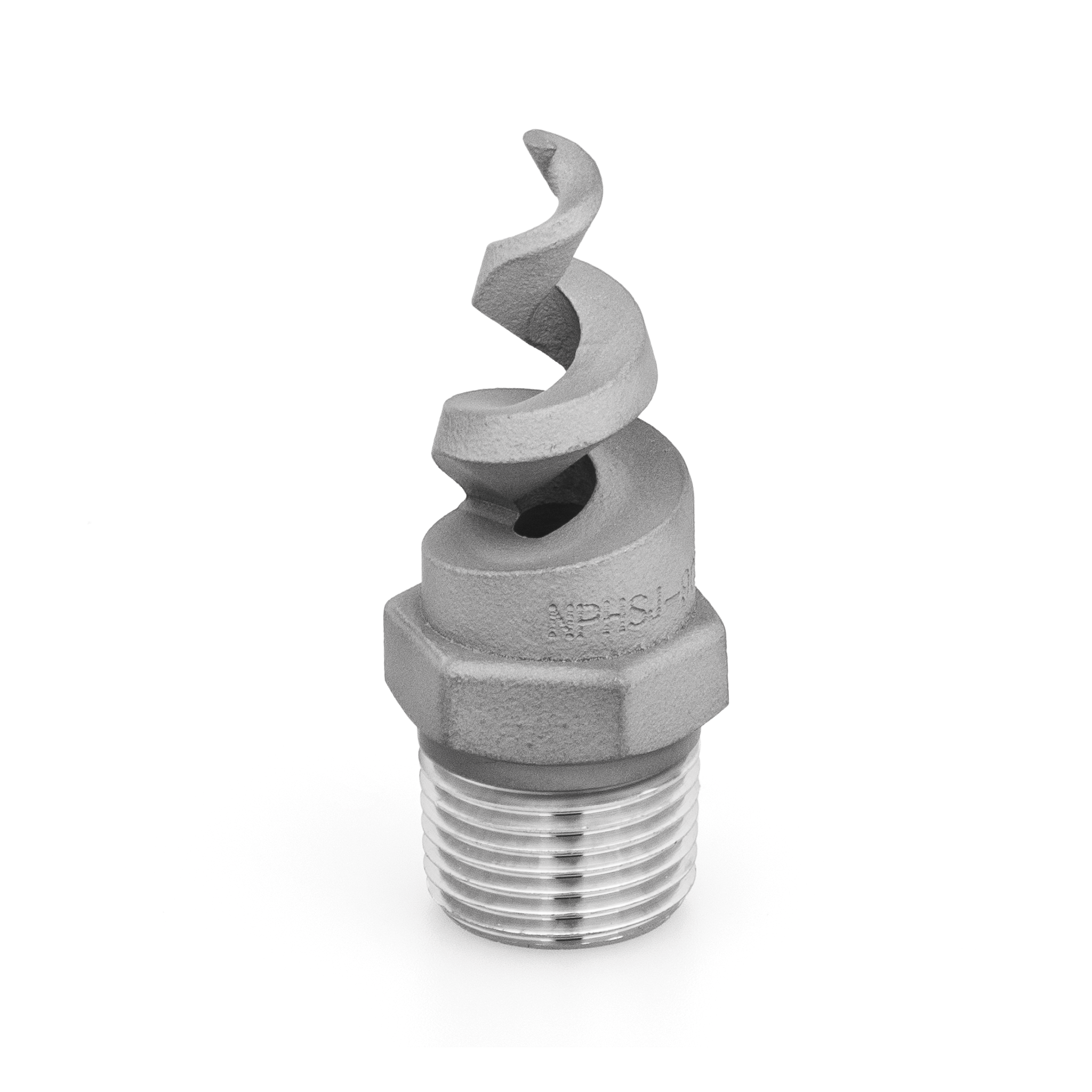

NPHSJ-1501780-2-316 – Full Cone, Spiral Nozzle, 2 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 1780 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 38.1 |
| Orifice Diameter. Nom. (in) | 1.5 |
| Inlet Connection Size (in.) | 2 |
| Length (mm) | 175 |
| Length (in) | 6.875 |
| Hex Size (mm) | 63.5 |
| Hex Size (in) | 2-1/2 |
| Spray Angle at Rated Pressure (PSI) | 150 |
| Max. Free Passage Dia. (mm) | 11.1 |
Description
Product Overview
A maintenance supervisor in the manufacturing & assembly facility uses the NPHSJ-1501780-2-316 during cooling & quenching to ensure consistent temperature control across metal components. Constructed from 316L stainless steel, this spiral nozzle generates a uniform full cone spray pattern that optimizes fluid distribution and reduces thermal stress. Its durable corrosion-resistant design minimizes downtime caused by wear and chemical exposure. By maintaining precise spray coverage, the nozzle supports process stability and enhances equipment longevity.
Applications
In cooling & quenching operations, the nozzle delivers consistent fluid flow necessary to regulate material temperatures and prevent overheating. Additionally, its role in cleaning & washing helps remove residues effectively, contributing to improved surface quality and reduced contamination risks downstream.
Industries
Sectors such as building materials, chemical processing, and steel & metals rely on this nozzle for its corrosion resistance and spray uniformity under harsh conditions. Energy, mining, and dairy industries also benefit from its ability to maintain process efficiency where fluid control and equipment durability are critical.
