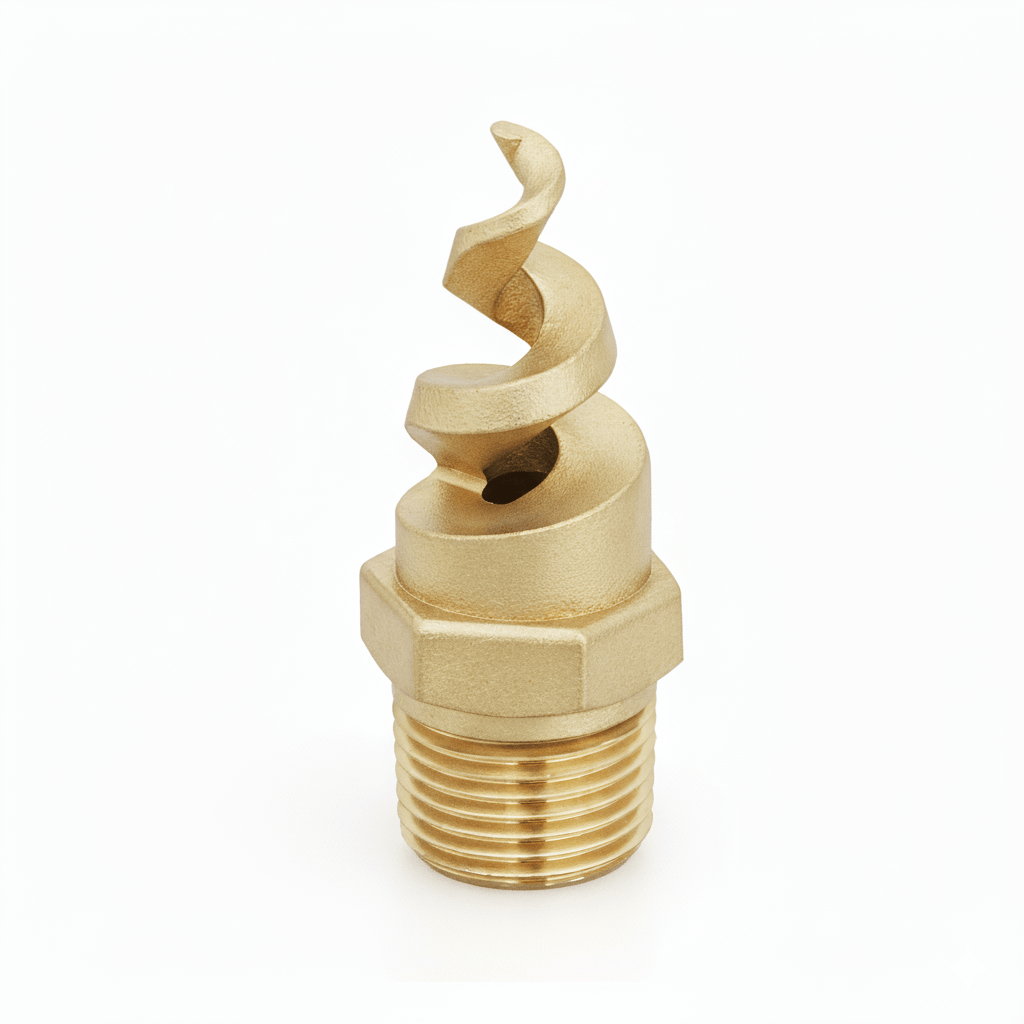

NPHSJ-15013-1/4 – Full Cone, Spiral Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 13 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 150 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
Inside the steel & metals line's specialty applications stage, a production technician relies on the NPHSJ-15013-1/4 to deliver consistent full cone spray coverage critical for surface treatment processes. Constructed from brass, this spiral nozzle withstands corrosive environments while maintaining uniform droplet distribution through its 1/4 inch inlet. The operator calibrates flow rates to optimize cooling and cleaning cycles, ensuring efficient resource use and minimizing downtime. Its dependable spray pattern contributes directly to process stability and product quality control.
Applications
In cleaning & washing operations, the nozzle's even spray pattern enhances removal of contaminants without overuse of fluids, reducing waste and improving cycle times. Additionally, its role in cooling & quenching supports rapid temperature stabilization of metal components, which is essential for maintaining metallurgical properties and extending equipment life.
Industries
Sectors such as building materials, chemical processing, and manufacturing & assembly utilize this nozzle for its durability and consistent spray performance under demanding conditions. The Energy and mining industries also benefit from its corrosion resistance and reliable operation, making it suitable for applications ranging from dust control to fire protection & safety.
