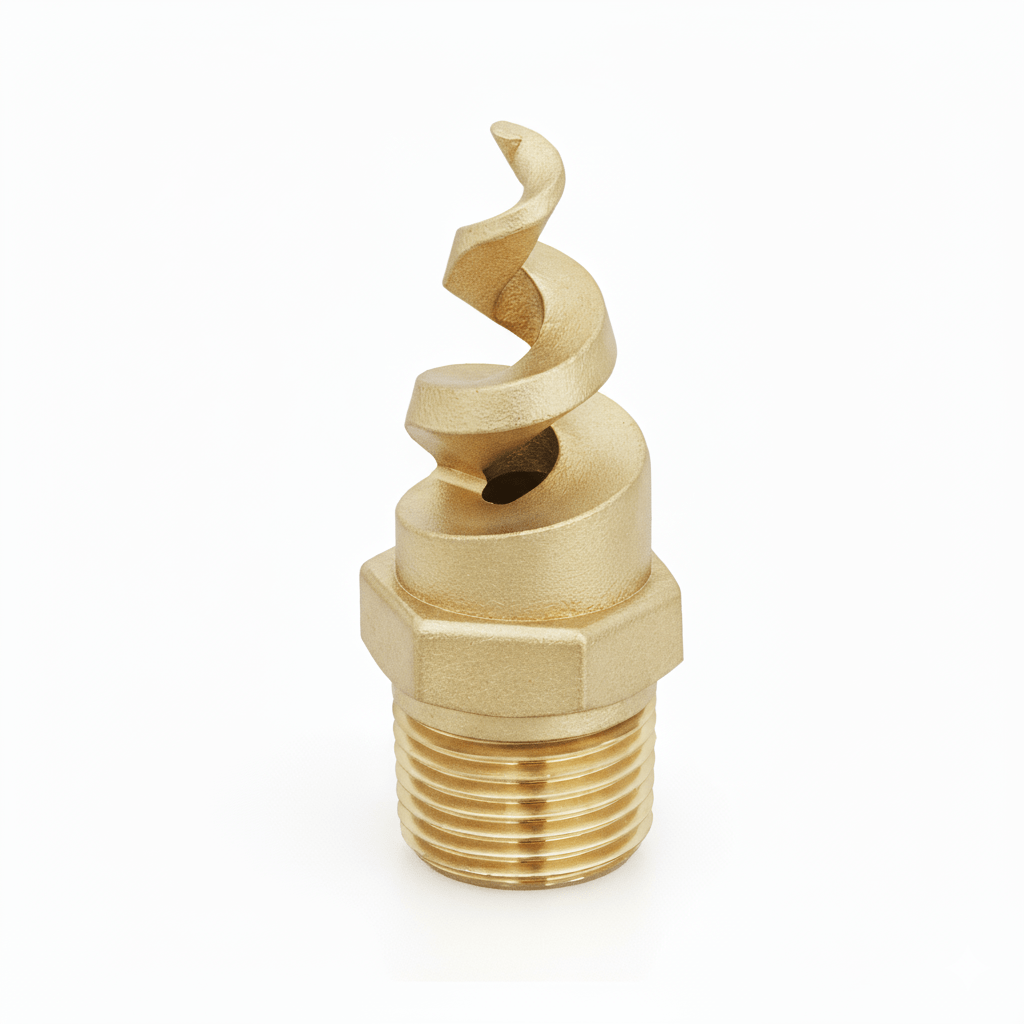

NPHSJ-120470-1 – Full Cone, Spiral Nozzle, 1 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 470 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 19.1 |
| Orifice Diameter. Nom. (in) | 0.75 |
| Inlet Connection Size (in.) | 1 |
| Length (mm) | 116 |
| Length (in) | 3.625 |
| Hex Size (mm) | 34.9 |
| Hex Size (in) | 1-3/8 |
| Spray Angle at Rated Pressure (PSI) | 120 |
| Max. Free Passage Dia. (mm) | 6.4 |
Description
Product Overview
During fire protection & safety on a cement site, utilities coordinators trust the NPHSJ-120470-1 to deliver consistent coverage through its precision full cone, spiral spray pattern. Constructed from brass, this nozzle resists corrosion caused by harsh environmental conditions and abrasive materials. Operators rely on the uniform spray distribution to maintain effective dust suppression and cooling, which directly supports site safety and equipment longevity. The 1-inch inlet size allows easy integration into existing piping systems without compromising flow rates or pressure control.
Applications
The NPHSJ-120470-1 plays a critical role in cleaning & washing processes by providing consistent fluid application that enhances operational hygiene and equipment maintenance. Additionally, its ability to perform in cooling & quenching operations helps manage thermal loads and reduce material stress, supporting efficient production cycles.
Industries
Sectors such as building materials, chemical processing, and steel & metals favor this nozzle for its durability and reliable spray characteristics under demanding conditions. The combination of corrosion resistance and precision spray makes it suitable for breweries & wineries, mining, and manufacturing & assembly environments where consistent fluid application is essential.
