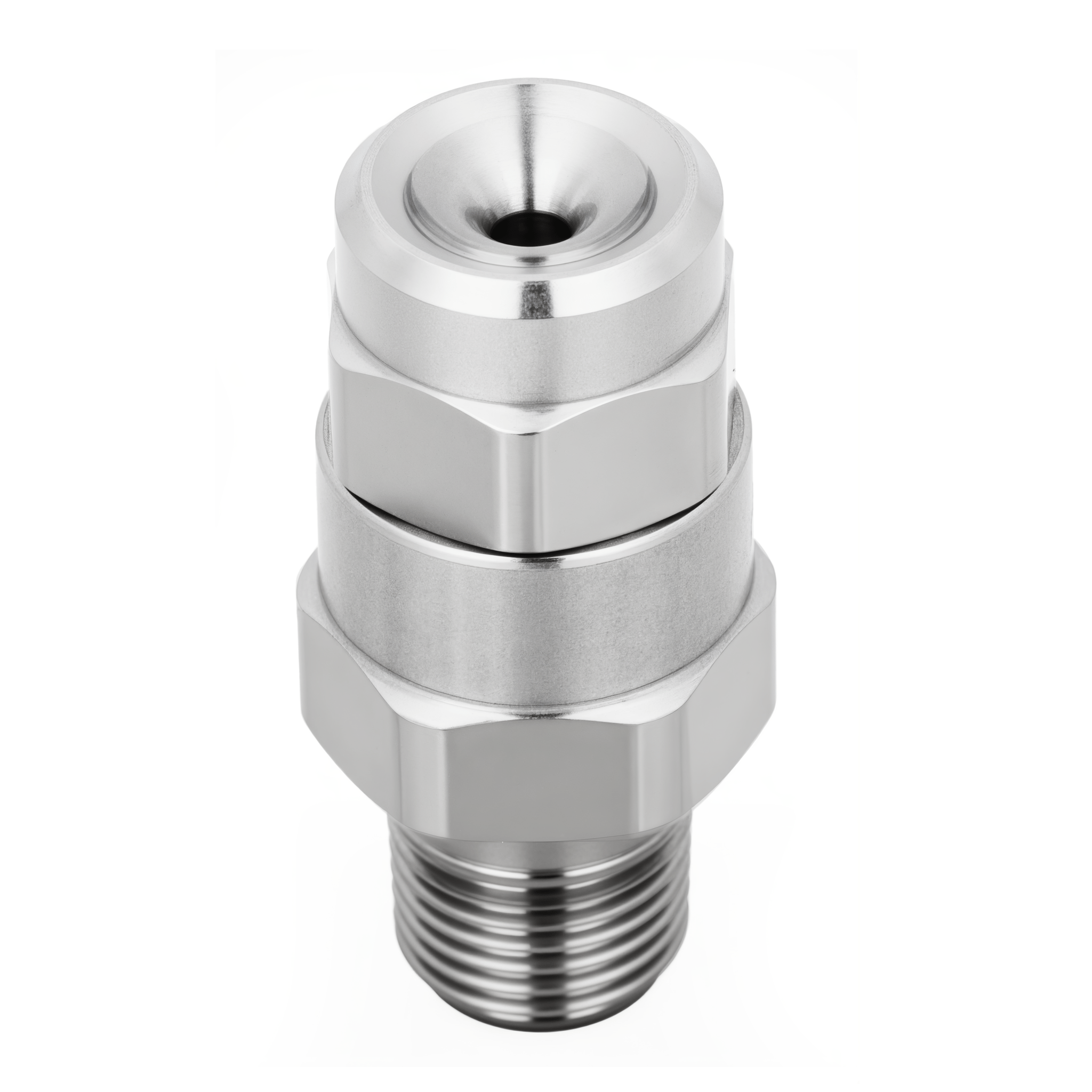

NPGG-35W-1/2-316 β Full Cone Nozzle, 1/2 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPGG |
| Capacity Size | 35W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 6 |
| Inlet Connection Size (in.) | 1/2 |
| Length (mm) | 56.5 |
| Length (in) | 2.219 |
| Hex Size (mm) | 25.4 |
| Hex Size (in) | 1 |
| Equivalent Orifice Diameter (in) | 0.234 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During coating & surface treatment on a mining site, process engineers trust the NPGG-35W-1/2-316 to deliver consistent full cone spray coverage that enhances material adhesion and surface quality. Constructed from 316L stainless steel, this nozzle resists corrosion in harsh environments, extending service life and reducing downtime. Operators install the NPGG-35W-1/2-316 onto standard 1/2-inch inlets, ensuring a uniform distribution of spray that improves process repeatability and minimizes overspray waste. The precise spray pattern supports tight control over fluid application rates, which translates into measurable improvements in coating consistency and operational efficiency.
Applications
In cleaning & washing operations, the nozzle's full cone spray pattern provides thorough surface coverage, enabling more effective removal of residues and contaminants. Its use in cooling & quenching processes helps maintain temperature control and material integrity, supporting downstream manufacturing steps.
Industries
Sectors such as automotive, building materials, Energy, and steel & metals rely on this nozzle for its corrosion resistance and spray uniformity under demanding conditions. Additionally, food & beverage, breweries & wineries, and cement industries benefit from the NPGG-35W-1/2-316's ability to maintain consistent fluid application
