Full Cone Nozzles

Full Cone Spray Nozzles

Full cone spray nozzles produce a solid circular pattern with complete coverage across the entire spray area. Available in spiral and axial whirl designs for cooling, washing, fire protection, and dust suppression applications.

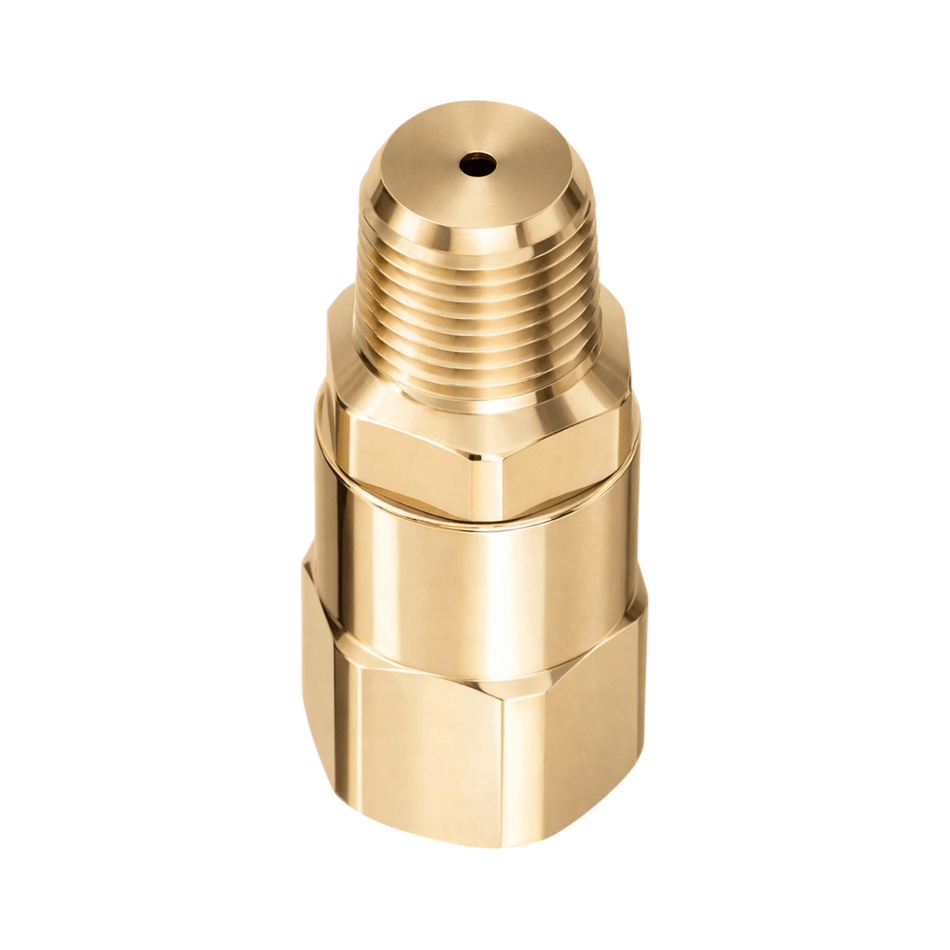

Full Cone Spray Nozzles for Complete, Uniform Coverage

Full cone nozzles distribute liquid evenly throughout a solid circular pattern, providing thorough coverage across the entire spray area.

Full cone nozzles create circular spray coverage through two primary mechanisms:

Spiral Design: Liquid enters and passes through helical vanes that impart rotation before exiting the orifice. The spinning liquid breaks into droplets distributed throughout a cone-shaped pattern. Spiral nozzles have large internal passages, reducing clogging risk with contaminated fluids.
Axial Whirl Design: Liquid enters tangentially into a swirl chamber, creating a vortex that exits through a central orifice. This design produces finer droplets and more uniform distribution than spiral types, but is more susceptible to clogging.

Full Cone Spray Pattern Characteristics:
- Coverage: Complete filling of circular area
- Distribution: Relatively uniform from center to edge
- Droplet size: Medium to large (spiral) or fine to medium (axial)
- Impact: Lower than flat fan; distributed across full area
- Spray angles: Typically 30ยฐ to 120ยฐ
Spray Pattern Full Cone
Available SKUs 880 Products
Quality Industrial Grade
Shipping Ships Fast

How Full Cone Spray Nozzles Work

Internal vanes impart a swirling motion to the liquid, producing a filled conical spray with uniform distribution from center to edge.

Operating Principle

Full cone spray nozzles produce circular spray coverage by distributing liquid evenly throughout a cone-shaped pattern. Two primary internal designs are used to achieve this distribution.

โ€ข Spiral Design: Liquid passes through helical vanes that impart rotation before exiting the orifice. The spinning liquid breaks into droplets distributed throughout the cone pattern. Spiral nozzles feature large internal passages that reduce clogging risk when spraying contaminated fluids.

โ€ข Axial Whirl Design: Liquid enters tangentially into a swirl chamber, creating a vortex that exits through a central orifice. This design produces finer droplets and more uniform distribution than spiral types but may be more susceptible to clogging when particles are present.

Full Cone Spray Pattern Characteristics

โ€ข Coverage: Complete filling of a circular spray area.

โ€ข Distribution: Relatively uniform spray distribution from the center toward the edges.

โ€ข Droplet Size: Medium to large droplets for spiral designs; fine to medium droplets for axial whirl designs.

โ€ข Impact: Lower impact than flat fan patterns because energy is distributed across the entire coverage area.

โ€ข Spray Angles: Typically available in ranges from 30ยฐ to 120ยฐ depending on nozzle design and capacity.

Full Cone Nozzle Applications

Full cone Nozzles are widely used for gas cooling, quenching, fire suppression, washing, and product rinsing.

Cleaning & Washing

Support rinsing, washdown, parts cleaning, and surface cleanup with coverage and impact matched to the soil load and line speed.

Coating & Surface Treatment

Apply coatings, chemicals, and pretreatment fluids with repeatable coverage and controlled transfer efficiency.

Cooling & Quenching

Control part temperature and process heat with spray coverage sized for the required cooling rate and heat removal.

Dust & Pollution Control

Capture airborne dust, cool gas streams, and suppress fugitive emissions with the right droplet size and coverage.

Full Cone Nozzle Selection Guide

Select spray angle, flow rate, and droplet size based on coverage area, drop height, and process temperature requirements.

Flow Rate & Pressure

Start with the flow rate you need at the operating pressure available at the nozzle or assembly.

Spray Pattern & Coverage

Choose the full cone spray pattern that best matches the coverage width, impact, atomization, or washdown result your process requires.

Materials & Connections

Select wetted materials compatible with the fluid, temperature, and wear conditions; common options may include 316L stainless steel, brass, 303/304 stainless steel, and polypropylene; common sizes include 3/8 in., 1/2 in., 1/4 in., and 1/8 in. with NPT connections where available.

Maintenance & Reliability

Consider clogging risk, wear life, ease of change-out, and the maintenance routine your process can realistically support.

Industries That Rely on Full Cone Nozzles

Steel, power generation, food processing, chemical, and fire protection industries all depend on full cone nozzles for critical spray applications.

Full Cone Spray Nozzles are commonly used in Automotive, Building Materials, and Chemical Processing.

Final selection usually comes down to process chemistry, utility availability, maintenance practices, and the amount of coverage, impact, or atomization the application requires.
Automotive Building Materials Chemical Processing Energy & Power Generation Food & Beverage Mining Steel & Metals

Full Cone Nozzle FAQ

Get answers to the most common questions about full cone spray angles, flow rates, and material selection.

What is the difference between full cone and hollow cone nozzles?

Full cone nozzles fill the entire circular spray area with droplets, providing complete coverage. Hollow cone nozzles spray only the outer ring, leaving the center empty. Full cone nozzles are typically used for washing, cooling, and fire protection where total coverage is required, while hollow cone nozzles are preferred for evaporative cooling, dust suppression, and applications where fine atomization and air entrainment are important.

Should I use spiral or axial whirl full cone nozzles?

Spiral full cone nozzles are best for fluids containing particulates or debris due to their larger free passage and lower clogging risk. They are commonly used for cooling metals, glass, and steel as well as dust suppression. Axial whirl full cone nozzles are best suited for clean fluids and applications requiring finer, more uniform droplets, such as fire protection systems, gas scrubbing, and chemical processing.

What spray angle do I need for full cone nozzles?

Spray angle determines the coverage diameter at a given distance from the nozzle. Narrow angles (30ยฐโ€“60ยฐ) provide concentrated coverage with higher impact and smaller coverage diameter. Standard angles (70ยฐโ€“90ยฐ) provide balanced coverage and impact for general cooling and washing. Wide angles (100ยฐโ€“120ยฐ) provide maximum coverage area with lower impact and allow fewer nozzles to be used. Coverage diameter can be estimated using the formula: Coverage Diameter = 2 ร— Distance ร— tan(Angle รท 2).
