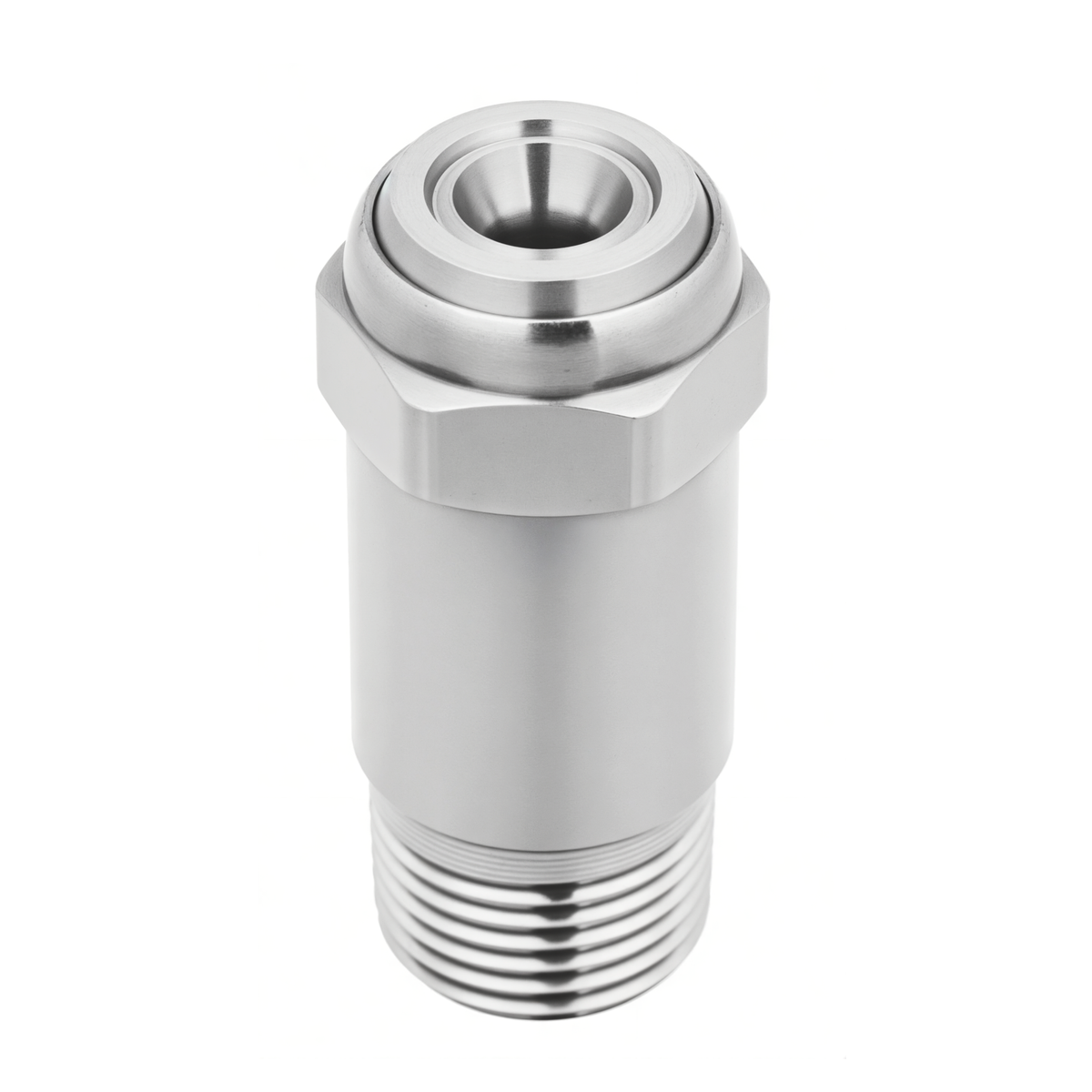

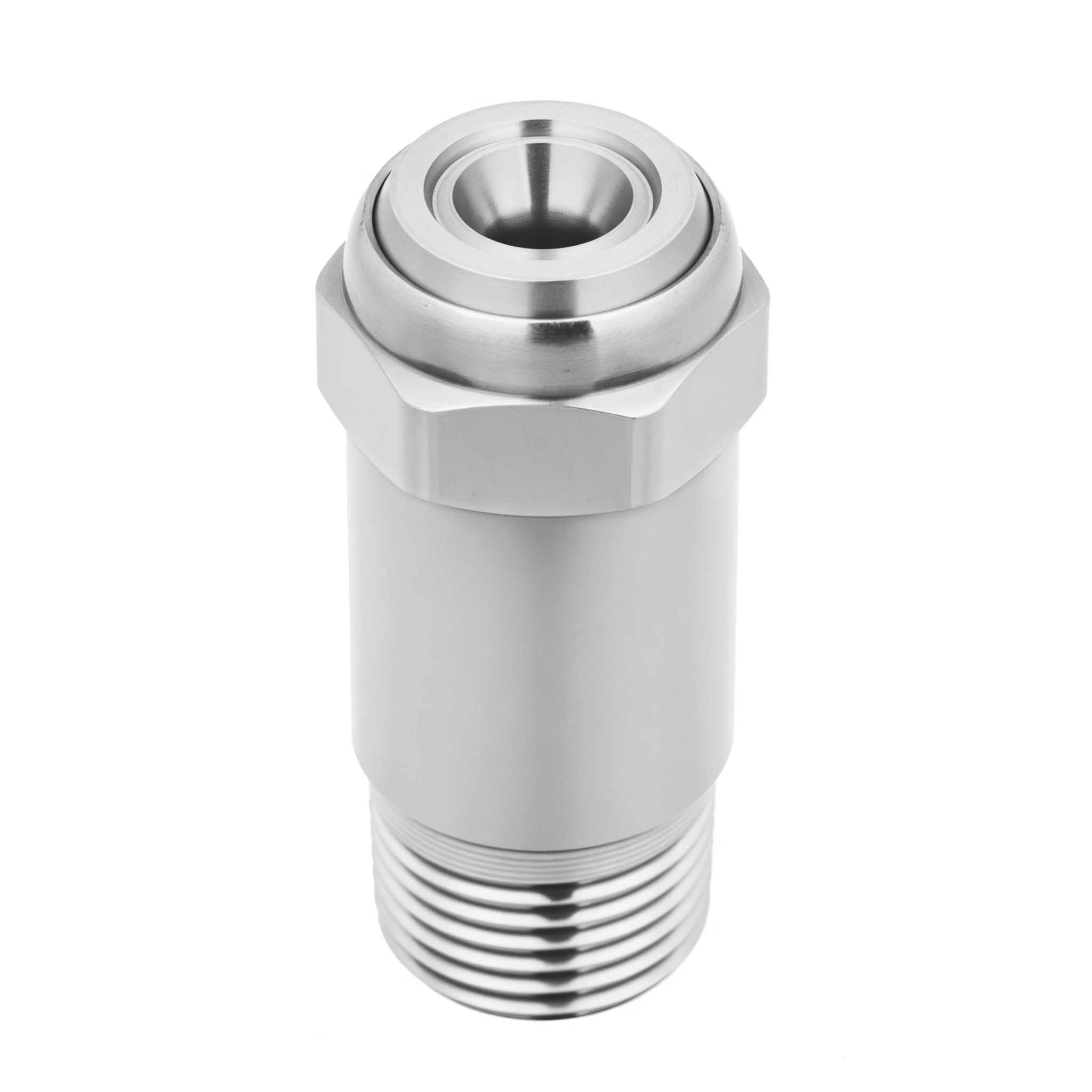

NPMFP-9032-1/2M-SS – Full Cone Spray Nozzle, 1/2" Inlet, 303/304 Stainless Steel

Images are representative. Images are representative. Products may differ in material or configuration.
NozzlePro

Product details

  • Vendor NozzlePro
  • SKU NPMFP-9032-1/2M-SS

Helpful documents

Chart

Are you a distributor? Login or Register to get pricing.

Description
The NPMFP-9032-1/2M-SS is a high-precision full cone spray nozzle crafted from 303/304 stainless steel with a 1/2" inlet for industrial use. Applications: Cleaning & Washing, Cooling & Quenching, Dust & Polution Control, Specialty Applications. Industries: Automotive, Chemical Processing, Energy, Food & Beverage, Mining, Steel and Metals.
Product Parameters
Product Family Full Cone
Product Series NPMFP
Capacity Size 32
Inlet Connection Thread Type NPT
Material Composition Filter 303/304 stainless steel
Inlet Connection Size (in.) 1/2
Length (mm) 45.1
Length (in) 1.225
Hex Size (mm) 25.4
Hex Size (in) 7/8
Spray Angle at Rated Pressure (PSI) 90
Max. Free Passage Dia. (mm) 4.8
